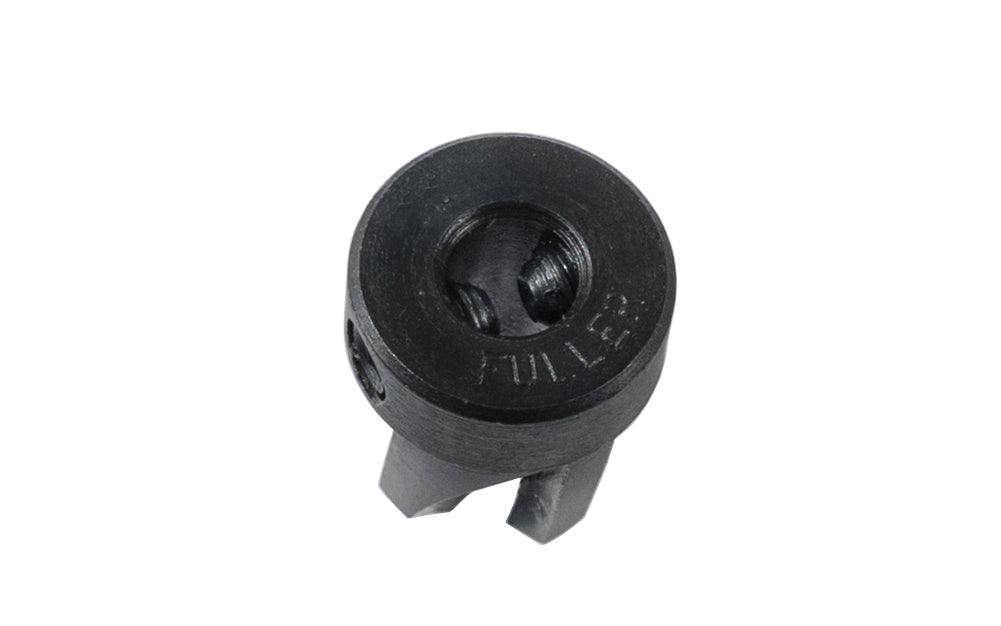

WL Fuller Combination Four-Flute Type "C" Countersink & Drill Bit ~ Short Length

WL Fuller Combination Four-Flute Type "C" Countersink & Drill Bit ~ Short Length

Regular price $ 11.59
Regular price Sale price $ 11.59
Sale Sold out
Shipping calculated at checkout.

Made in the USA  ·  W.L. Fuller

  • Countersink & tapered bit together
  • Countersink is made of carbon steel & heat-treated for long tool life
  • For use in all woods & plastics
  • 82° cutting angle head
  • Four flutes for clean & accurate boring
  • Two hex-socket set screws in countersink
View full details

  • A high quality American-made countersink & tapered bit made by WL Fuller. Made of carbon steel & heat-treated, this countersink is very well-built, durable, & cuts into materials well. This type “C” countersink is designed for use in all woods, plastics, & non-ferrous metals. It has four flutes for clean & accurate boring, & a standard 82° cutting angle which will accommodate most bevelled screws. The countersink is held in place with two hex-socket set screws fastened into the bit & is easily adjustable up & down the length of the drill bit if the need arises. The countersink may be mounted on taper point, brad point & regular point drills. A very popular item with our customers.  Made in the USA.

       The W.L. Fuller Co. is a family owned, third generation manufacturer of the best countersinks, counterbores, plug cutters, taper point drills, brad point drills, & step drills. All made 100% in the U.S.A. today. With over 60 years experience manufacturing tools to cut woods, plastics, & metals, Fuller provides tools you need to get the job done while saving you time & money. All of their products carry their “satisfaction guarantee”.

  • Model
    Cutting Diameter
    Drill Hole Size Drill Bit Length
    Countersink Length
    #C2S
    1/4"
    5/64" 1-3/4" 3/4"
    #C3S 1/4" 3/32 1-7/8" 3/4"
    #C4S 5/16" 7/64" 1-7/8" 7/8"
    #C44S 5/16" 1/8" 2" 7/8"
    #C65S 5/16" 9/64" 2-1/8" 7/8"
    #C410S 5/16" 5/32" 2-1/8" 7/8"
    #C411S 5/16" 11/64" 2-1/4" 7/8"
    #C43S 5/16" 3/16" 2-1/4" 7/8"
    #C56S 3/8" 3/32" 2-7/8" 7/8"
    #C57S 3/8" 7/64" 2-7/8" 7/8"
    #C5S 3/8" 1/8" 2" 7/8"
    #C6S 3/8" 9/64" 2" 7/8"
    #C7S 3/8" 5/32" 2-1/8" 7/8"
    #C8S 3/8" 11/64" 2-1/4" 7/8"
    #C9S 3/8" 3/16" 2-1/4" 7/8"
    #C913S 3/8" 13/64" 2-3/8" 7/8"
    #C97S 3/8" 7/32" 2-1/2" 7/8"
    #C105S 7/16" 5/32" 2-1/8" 7/8"
    #C1011S 7/16" 11/64" 2-1/4" 7/8"
    #C103S 7/16" 3/16" 2-1/4" 7/8"
    #C10S 7/16" 13/64" 2-1/4" 7/8"
    #C1014S 7/16" 7/32" 2-1/2" 7/8"
    #C104S 7/16" 1/4" 2-1/2" 7/8"
    #C122S 1/2" 1/8" 2" 7/8"
    #C129S 1/2" 9/64" 2" 7/8"
    #C125S 1/2" 5/32" 2-1/8" 7/8"
    #C1211S 1/2" 11/64" 2-1/4" 7/8"
    #C92S 1/2" 3/16" 2-1/4" 7/8"
    #C102S 1/2" 13/64" 2-3/8" 7/8"
    #C12S 1/2" 7/32" 2-1/4" 7/8"
    #C1415S 1/2" 15/64" 2-1/2" 7/8"
    #C14S 1/2" 1/4" 2-5/8" 7/8"
    #C145S 5/8" 5/32" 2-1/8" 1-1/16"
    #C143S 5/8" 3/16" 2-1/4"
    1-1/16"
    #C167S 5/8" 7/32" 2-1/2"
    1-1/16"
    #C16S 5/8" 1/4" 2-5/8"
    1-1/16"
    #C1617S 5/8" 17/64" 2-3/4"
    1-1/16"
    #C169S 5/8" 9/32" 2-3/4"
    1-1/16"
    #C1619S 5/8" 19/64" 2-7/8"
    1-1/16"
    #C18S 5/8" 5/16" 2-7/8"
    1-1/16"
    #C243S 3/4" 3/16" 2-1/4"
    1-1/8"
    #C247S 3/4" 7/32" 2-3/8"
    1-1/8"
    #C244S 3/4" 1/4" 2-5/8"
    1-1/8"
    #C245S 3/4" 5/16" 2-7/8"
    1-1/8"
    #C20S 3/4" 21/64" 3"
    1-1/8"
    #C24S 3/4" 3/8" 3-1/4"
    1-1/4"
    #C284S 7/8" 1/4" 2-5/8"
    1-1/4"
    #C285S 7/8" 5/16" 3"
    1-1/4"
    #C286S 7/8" 3/8" 3-1/4"
    1-1/4"
    #C324S 1" 1/4" 2-5/8"
    1-3/8"
    #C326S 1" 3/8" 3-1/4" 1-3/8"
