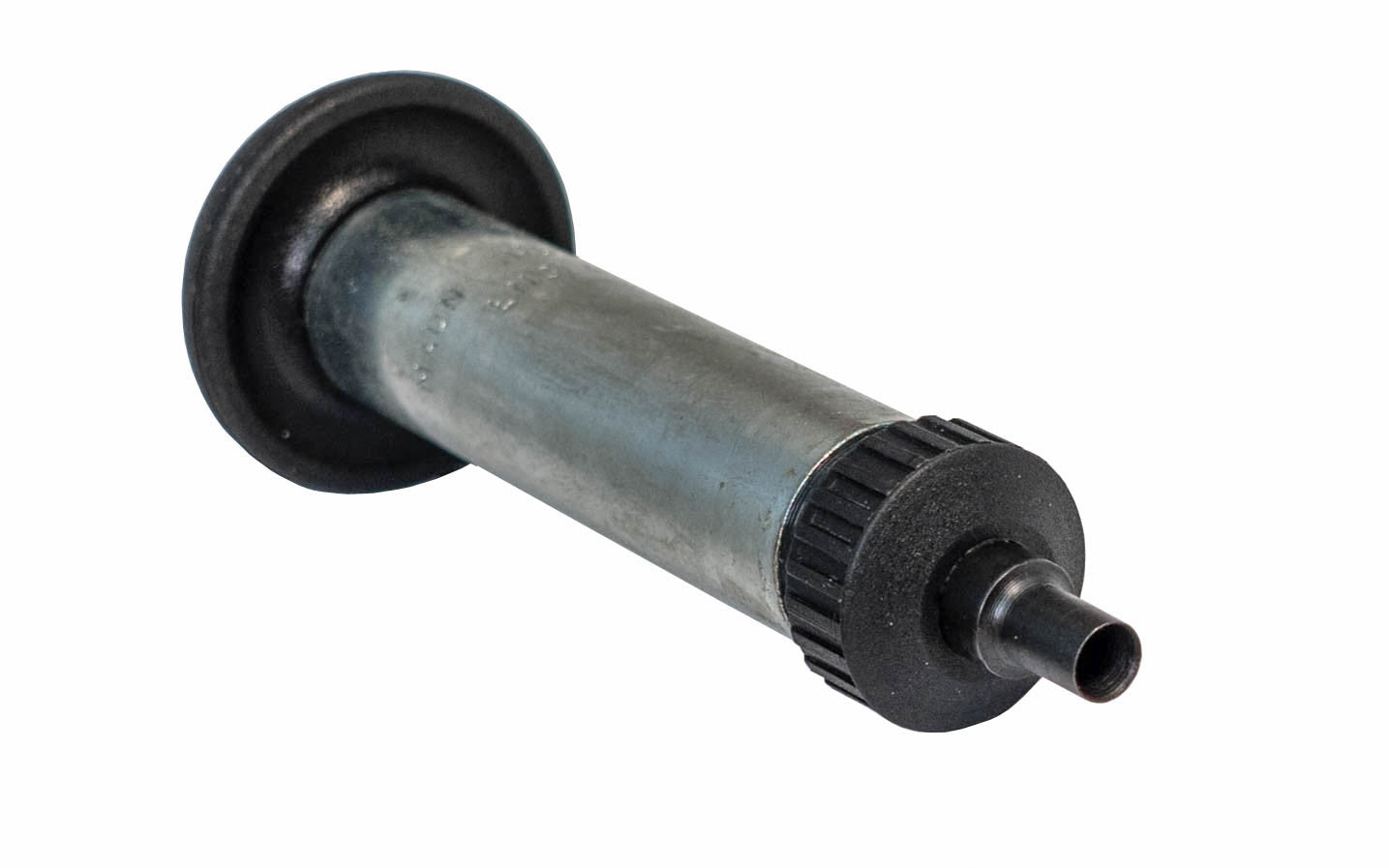

You can use this tool for drilling holes up to 1/4" (6 mm) diameter in various materials up to 8 mm thick. Cutting is achieved by applying light pressure onto the drill by placing the palm of the hand over the spherical cap, & at the same time, moving the wrist to rotate the drill slowly back & forth. Although designed for paper & card, the drill is particularly effective on cloth, PVC, polythene & other soft materials, which can otherwise be difficult to cut cleanly. With an 5/16" (8 mm) depth of cut, many sheets of thinner materials can be drilled in one operation. The advantage of using this product is that drilling can commence anywhere on the material. The slugs are collected inside the hollow body & are cleared by unscrewing the spherical cap. When using the drill, the material should be supported on a block of wood to avoid either damage to the punch or to the work top. Try to keep the axis of the drill vertical when drilling the full 5/16" (8 mm) depth.
Maun Industries was established in Mansfield in 1944, taking its name from the small river that runs through the town. The quality in design, engineering, & manufacturing is what ensures a high performance from all Maun tools.
Product Diameter Depth of Cutter Overall Length Model #Hole Punch Drill 1/4" (6 mm) 5/16" (8 mm) 4 - 1/2" (114 mm) MUN-1010-006
