Bessey 40" K Body Revo Parallel Bar Clamp ~ KRE3540

Bessey 40" K Body Revo Parallel Bar Clamp ~ KRE3540

Regular price $ 58.95
Regular price Sale price $ 58.95
Sale Sold out
Shipping calculated at checkout.

  • Model KRE3540 - Bessey K Body
  • 40" max opening - 3-3/4" throat depth
  • Designed to clamp at 90° with very large clamping surfaces
  • Converts to spreading with no tools required
  • 1700 lbs. clamping force
  • Anti-slide mechanism holds jaw in place during setup
  • Steel socket in handle - use 6 mm key to apply pressure & force
  • Plastic pressure caps protect the work piece surface
View full details

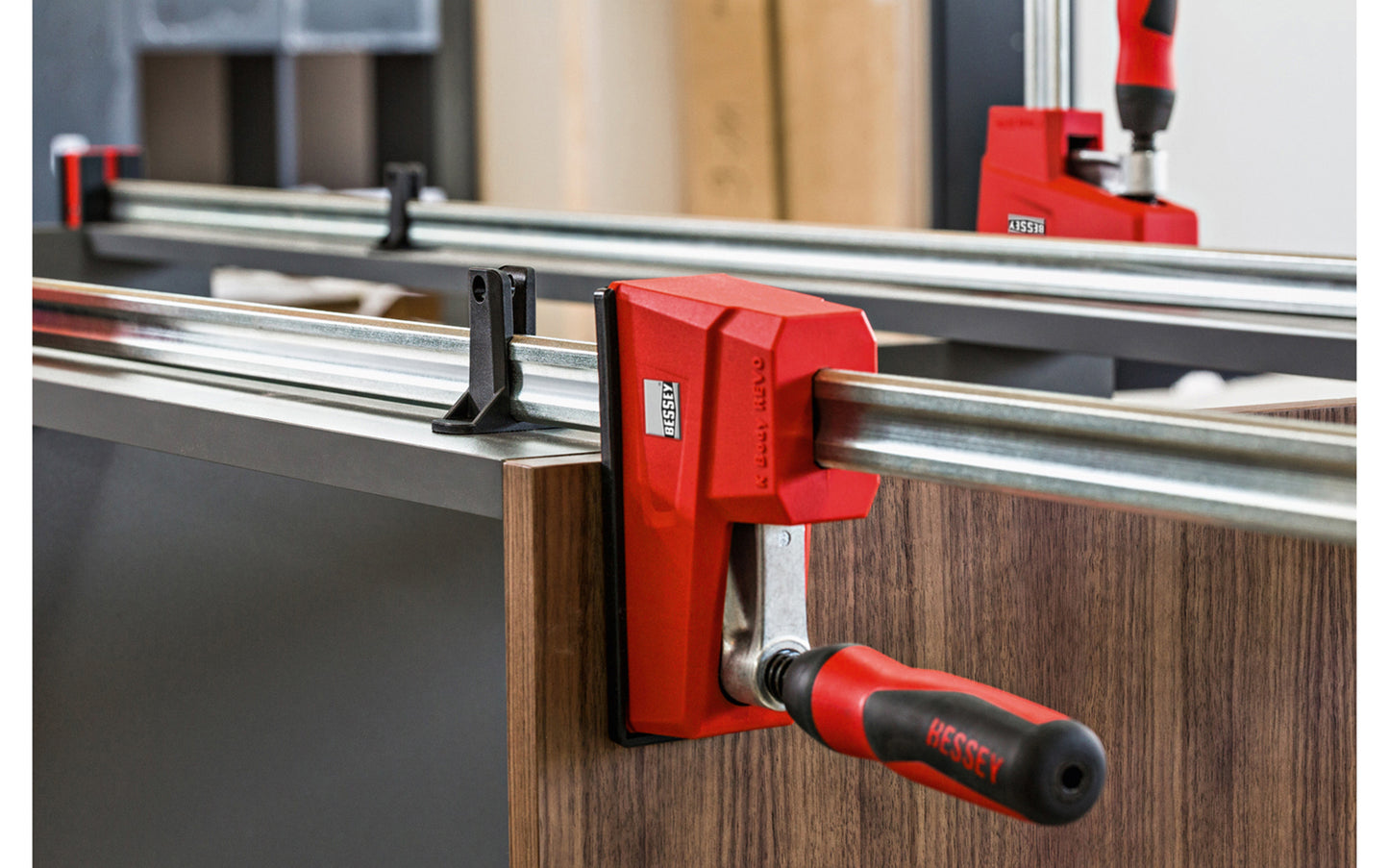

  •  These Bessey Parallel K-Body REVO Bar Clamps are powerful clamps designed to clamp at 90 degrees to the rail with very large clamping surfaces. The clamping surfaces are perpendicular to the rail. It has three removable pressure caps that are repellent to glue, & resistant to paint & grease solvents. the large surface areas distribute high clamping force evenly. The operating jaw stays where you put it for easy set up. Position where you like & apply clamping force. Converts to spreading with no tools required in seconds by removing the end stop & reversing the operating head. Includes two work piece supports to prevent the clamped material from contacting the steel rail. Powerful clamps with simple set up & operation, secure clamping force up to 1700 lbs.

    From the Manufacturer - About Bessey

       Since 1889, Bessey has been setting standards in hand clamping & cutting technology. Our core competencies of research & development allow us to continuously create innovative new products &, to improve upon our current products. Bessey's tools are produced from the top quality materials, using state of-the-art techniques. This allows the highest degree of comfort, safety & user-friendliness so that you can also benefit from our unique innovation advantage &, in accordance with our company motto: “Bessey. Simply better.“

  • Product Max Opening Reach/Throat Depth Clamping Pressure Spread Capacity Bar Size Overall Length Model #
    Bessey 40" K Body Revo Parallel Bar Clamp ~ KRE3540 40" 3-3/4" 1700 lbs. 10" to 44-1/2" 1-1/8" Wide  x  3/8" Thickness 47-1/2"
