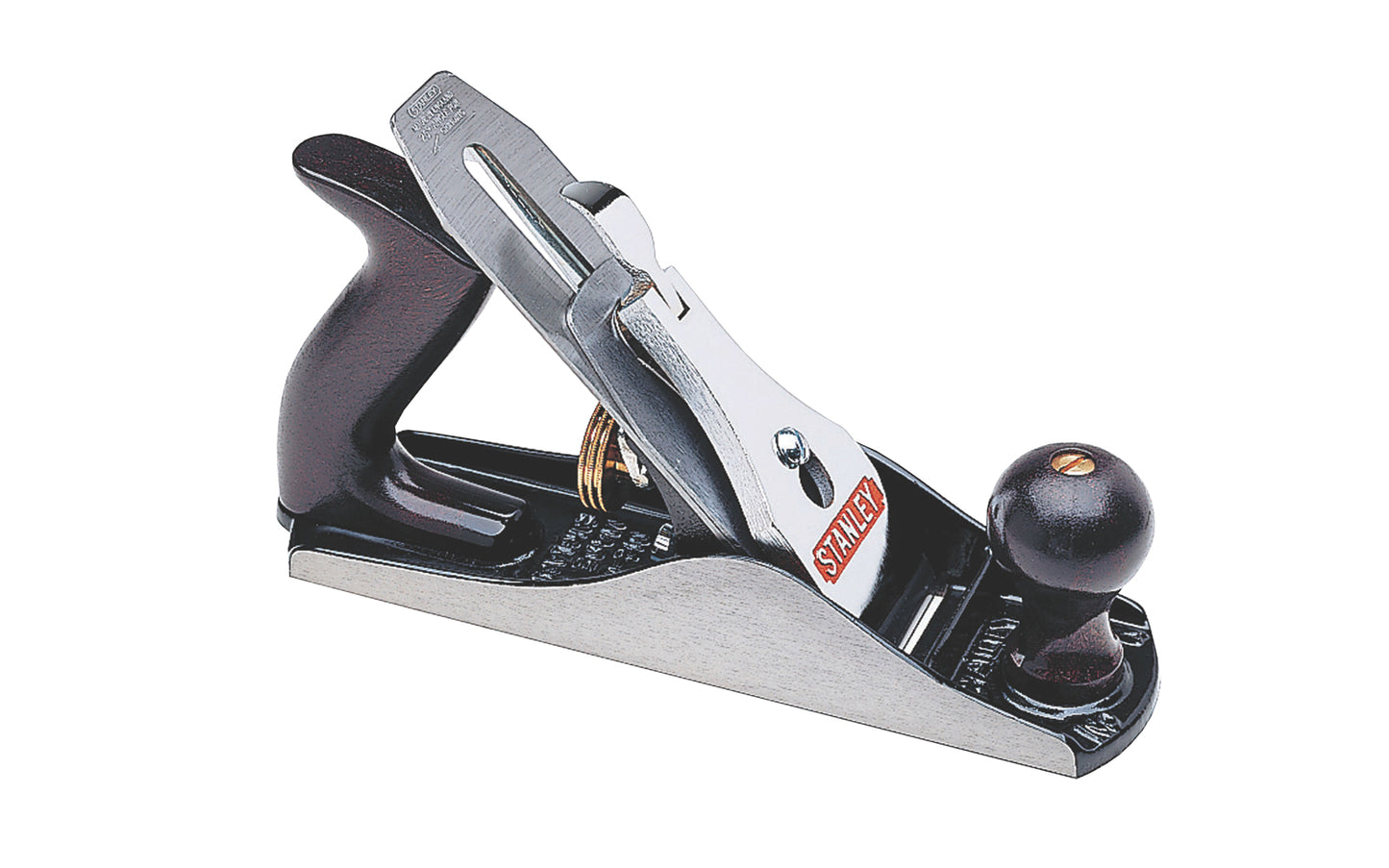

9-3/4" Stanley Bailey Bench Plane No. 4

9-3/4" Stanley Bailey Bench Plane No. 4

Regular price $ 66.99
Regular price Sale price $ 66.99
Sale Sold out
Shipping calculated at checkout.

Model No. 12-904

  • 2" wide cutter blade
  • Tempered carbon steel cutter blade
  • Cast iron grey base with precision-ground sides for accuracy when planing
  • Fully machined & polished double-iron cutter & lever - Quick-release cam lock makes iron removal easy
  • Frog seat is machined for precise mouth adjustment
  • Cutter depth is adjustable, resting at 25° angle
  • Solid brass cutter-adjustment knob
  • Durable epoxy-coated finish provides long-lasting protection

View full details

  •  The Stanley Bailey No. 4 smoothing bench plane is great for general shaving of wood surfaces. A very common & popular hand plane, it is great for general smoothing & finish work. It also can be used for trimming parts & other miscellaneous jobs. The chip breaker double-iron cutter & lever provide maximum control when using, even over rough & uneven stock. The machined frog & cutter seatings help eliminate blade chatter as well. The bench smoothing plane also has a quick-release cam-lock that makes iron removal quick & easy. The kidney-shaped hole in lever cap helps secure cutter in place. Contoured, polished high-impact polymer handles & knobs. Finger rest on front for comfort & control. Replacement Iron 12-313. See here.   Note: Honing is recommended before use.

  • Product Title Blade Width Blade Thickness Overall Plane Length Overall Plane Width Model #
    9-3/4" Stanley Bailey Bench Plane No. 4 2"  (51 mm) 3/32" 9-3/4"
    2-1/2"
    12-904
